BM-19800 Insulated Folding Doors

Description

BM-19800 is an insulated folding door system with top-hung operation and suitable for normal and large constructions. It offers sturdy and elegant solutions applied to middle and high-end projects, such as luxury residences, office buildings, conference centers, hotels, restaurants and many other.

Advantages

  • Large dimensions and wide spans
  • Sturdy structure with flawless and long-lasting operation
  • High thermal insulation and energy saving
  • High performance in terms of wind resistance, air permeability and water tightness
  • Easy machining and installation

Generic

THERMAL INSULATION AESTHETICS PANEL TYPE PANEL APPLICATIONS
Yes relatively low sight line top-hung operation aluminium framed panel with glazing bead modern residences, office buildings, conference centers, hotels, restaurants

Technical Characteristics

SASH WIDTH GLAZING POLYAMIDE MAIN GASKET LOCKING VISIBLE ALUMINIUM MAXIMUM WEIGHT MAXIMUM HEIGHT MAXIMUM PANEL WIDTH
50 mm 24-32 mm Double 18mm Double EPDM double locking latches 143m 125Kg per vent 2.8m 1.1m

Performance

UF WATER TIGHTNESS AIR PERMEABILITY WIND LOAD RESISTANCE
1.9 W/m²K 4A, IFT cl. 3, IFT C1/B1, IFT

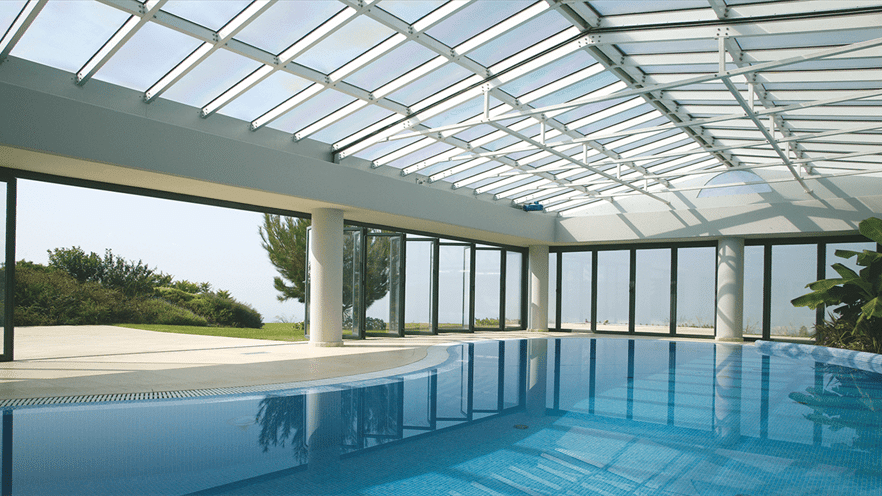

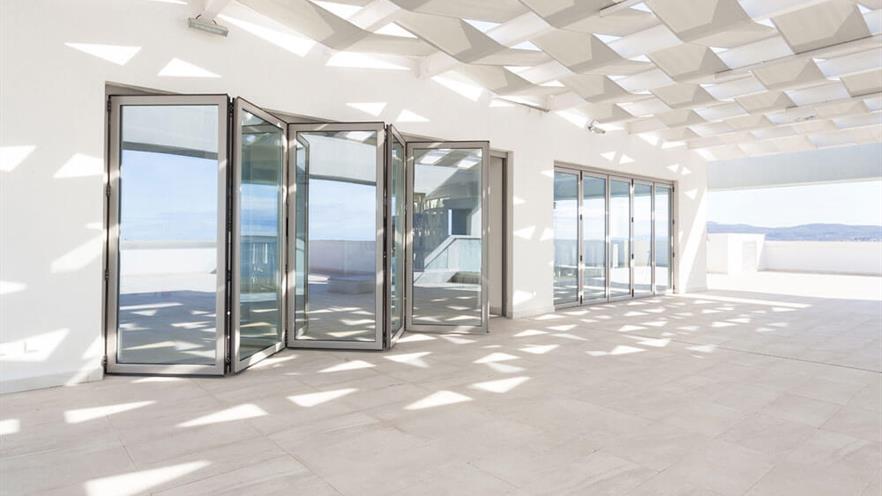

MEDIA GALLERY

TYPOLOGIES

Odd number of vents on both sides (meeting stile)
Odd number of vents on one side
Odd number of vents plus door
Odd number of vents on one side
Odd number of vents on both sides (meeting stile)
Odd number of vents on one side
Odd number of vents on both sides (meeting stile)
