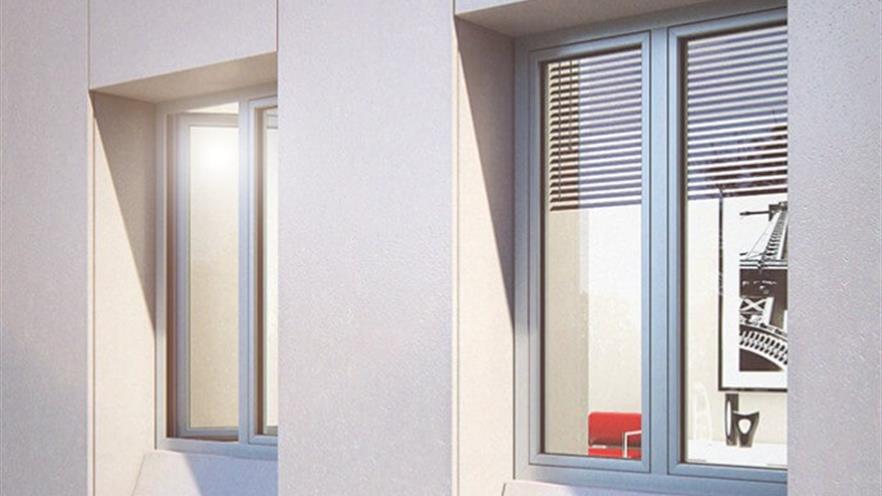

Hinged insulated system BM-9660

Description

BM-9660 is an insulated Tilt & Turn system for areas with warmer climate, ensuring high quality constructions and application of various typologies with considerable thermal performance. It is ideal for renovations, combining safety and functionality, without requiring high investment costs.

Advantages

  • Very good value for money
  • High energy savings due to the high energy efficiency of the system
  • Increased level of security
  • High level of sound insulation
  • Ease of use and high functionality
  • Modern design for windows either with flat or curved line
  • High quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
  • Entrance doors with ease of access according to specifications for people with special needs
  • Special solutions for Hotels
  • Variety of alternative solutions
  • Flexibility in construction

Generic

WINDOWS TYPES THERMAL INSULATION EXTERIOR SHAPES
Hinged Yes Classic, Curved, Flat

Technical Characteristics

FRAME DEPTH SASH DEPTH SASH WEIGHT MINIMUM VISIBLE ALUMINIUM FACE HEIGHT MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) GLAZING TYPE MAXIMUM GLAZING THICKNESS SEALING METHOD MINIMUM THRESHOLD HEIGHT TYPE OF THERMAL INSULATION
56 mm 63,5 mm up to 180 Kg 82 mm 61 mm Double – Triple from 20 up to 49 mm Perimetrical at 3 levels with EPDM gaskets 15 mm Polyamides 24 mm, PE insulation Foam

Performance

UF WATER TIGHTNESS AIR PERMEABILITY SOUND REDUCTION BURGLAR RESISTANCE
from 1.8 up to 2.5 W/m²K CLASS Ε1650 CLASS 4 36 dB RC2

Characteristics

TYPES OF TYPOLOGY
For all tilt & turn typologies

MEDIA GALLERY

TYPOLOGIES

One sash tilt and turn
Single tilt & turn with fixed light
Single tilt & turn casement with fanlight
Double tilt and turn window
Double tilt and turn window with fixed light
Double tilt and turn window with shutter
Hinged door inwards/outwards
Double leaf door inwards/outwards opening
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
